Thermostatic valve core product applications

In mix water valve, at the mixed water outlet is equipped with a temperature sensor, using the characteristics of the temperature sensing element to push the body valve core is moving, seal or open cold, hot water inlet. In blocking the cold water and hot water, when the temperature adjustment button set to degrees temperature, no matter how cold and hot water inlet temperature, pressure changes, the proportion of cold and hot water into the mix water valve changes, keeping water temperature at constant (button to set the temperature), adjust the button can be set arbitrary in product temperature scope, mix water valve will automatically to maintain the water temperature (after mix water temperature).

\

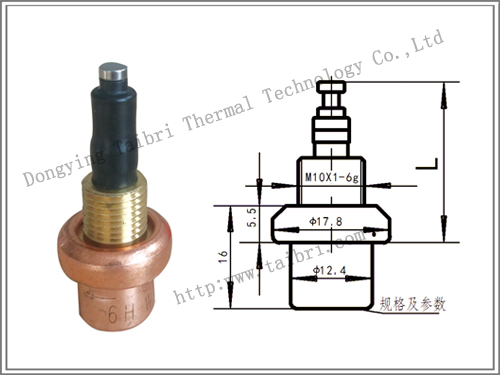

Part NO.	Use Temp range	Standard Length	Standard spring Force	Standard Temp	Minimum Load	Maximum Load	Max Temp

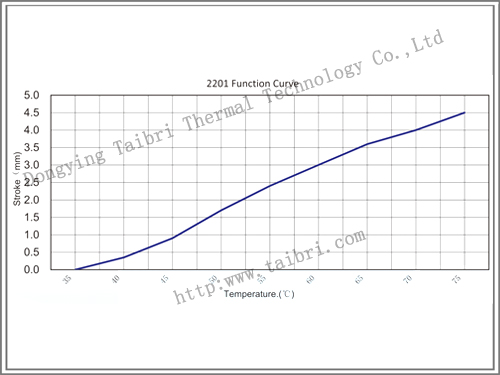

2201	35oC-71oC 91F-160F	25.4±0.2mm	90N	35oC 95F	60N	180N	100oC 212F
